1. Online Conveyor Metal Detector Industrial Metal Detectors for Food Industry
The digital industrial metal detector is an intelligent metal detection equipment developed using digital intelligent technology, which realizes the full digitization and intelligence of metal detection technology. Online metal detectors for food industry is used to detect various metal impurities such as metal chips, broken needles, iron wires, lead, copper, aluminum, tin, stainless steel, etc. that are mixed or lost in raw materials or products. Excellent performance, simple operation, and wide application industries. Our products have a wide range of specifications, sizes, and styles, providing various customized solutions. Welcome to contact us.

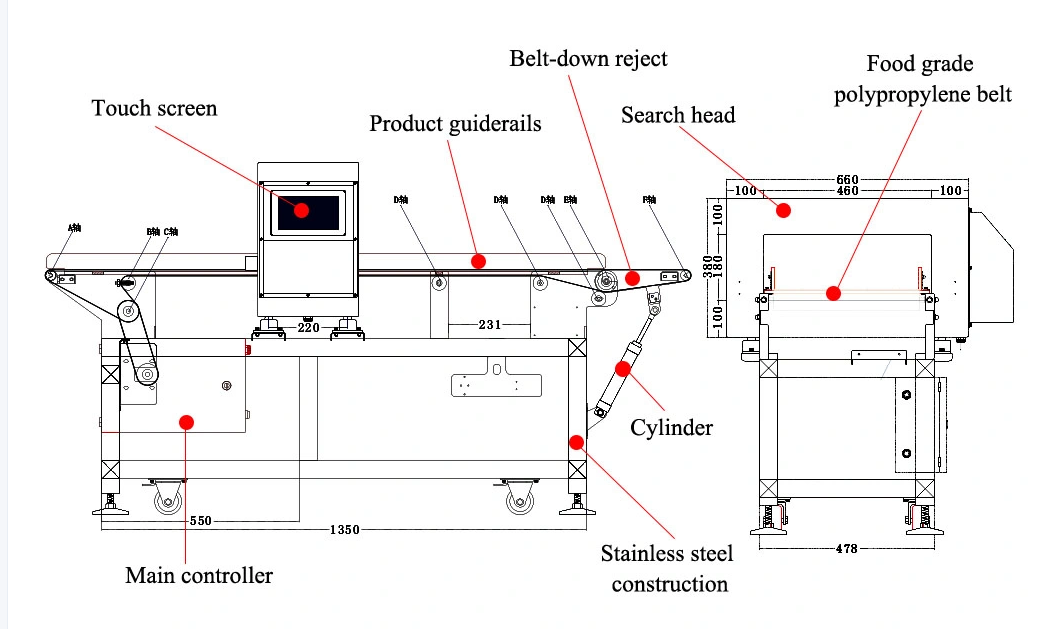

Online metal detectors for food industry photos
1. Model category: Standard model
2. Detection channel width (mm): 300-400 (customizable)
3. Detection channel height (mm): 100 (customizable)
4. Detection sensitivity: Iron ball diameter（ φ Mm) 0.6-0.8; 304 stainless steel diameter（ φ Mm) 1.2; Non metals such as copper, aluminum, and lead（ φ Mm) 1.2
5. Alarm method: buzzer, LED sound and light alarm, and automatic shutdown
6. Machine material: 304 stainless steel
7. Machine size: 1520 * 860 * 930MM
8. Machine weight: approximately 200 kg
9. Power supply: AC220V 50-60Hz
10. Power: approximately 140W
11. Load capacity 5-25KG
12. Conveying speed: 24m/min (50Hz)
The above parameters are for reference only and can be customized based on the size, weight, and characteristics of the tested product to achieve optimal detection sensitivity. According to the environment of the production line, customize waterproof, dustproof, explosion-proof and other requirements to ensure safe use.
The machine can be used in food,pharmaceutical,chemical,textile,garment,plastic,rubber industry etc, applying to detect metal pollution that mixed with products or raw materials.Using this machine can help manufacturers achieve compliance,minimize risk of product recalls and reduce production downtime.
1.Operating system has the function of one-button self-learning.Easy to operate and adjust for uesrs.
2.Able to store 100 kinds of product parameters for different products.
3.Adoptting modular design and installation that makes it easy to assemble and disassemeble.
4.Customization can be provided based on product’s size,weight and other characteristics to achieve best detection results.
5.The rejection system can be attached to the machine according to the requirements.
In 2010, Shanghai Shigan Industiral Co., Ltd. was established. We provide professional customized services in the fields of checkweigher machine,industrial metal detectors, weight sorting machines, weighing labeling machines and other products. 14 years of technological accumulation and cooperation with a large number of domestic and foreign customers have given us great confidence.
If we can solve your problem, it would be our honor. Welcome to your inquiry.
Main Products
1. Packaging materials: International standard export packaging boxes are usually use, which have good wear resistance, shock resistance, and waterproof performance. The material of the box can be hard wooden boxes, plastic boxes, or export specific cardboard boxes.
2. Protective measures: In order to ensure that the weigher is not damage during transportation, it is necessary to add sufficient filling materials, such as foam, shockproof cotton, etc., into the packaging box.
12 Months Guarantee
★ 12 months free main parts change (Please return the damaged parts by airmail)
★ Overseas engineers available (You only have to pay part of the freight)
After-sales Service Provided
Engineers availbale to provide after-sales service overseas in order to help customers solve technical problems.
